GUILLOTINE AIR GATES
3" air gate option

-
-Aluminum Frame With Stainless Steel Spring Actuated Gate
-
-2.75″ ID Gate Opening
-
-Use For Turbo’s With 2.25" OR 3″ Inlet Connection
-
-Overall Dimension 4.5″ Width x 8.5" Length
-
-Cable Not Included
2.25" silicone x 3" gate

-
– P/N: GAG099
-
-2.75″ ID Gate Opening
-
-2.25″ to 3″ Silicone Hose Connection
-
-(2) Heavy Duty Clamps
-
-Use For Turbo’s With 2.25″ Inlet Connection
-
COMMONLY USED WITH SB1 TURBOS ON GARDEN TRACTOR PULLING ENGINES
3" silicone x 3" gate

-
– P/N: GAG099-1
-
-2.75″ ID Gate Opening
-
-3″ to 3″ Silicone Hose Connection
-
-(2) Heavy Duty Clamps
-
-Use For Turbo’s With 3″ Inlet Connection
-
COMMONLY USED WITH SB1 TURBOS ON GARDEN TRACTOR PULLING ENGINES
4" air gate option

-
-Aluminum Frame With Stainless Steel Spring Actuated Gate
-
-3.5″ ID Gate Opening
-
-Use For Turbo’s With 3″ Inlet Connection
-
-Overall Dimension 5.5″ Width x 11″ Length
-
-Cable Not Included
3" silicone x 4" gate

-
– P/N: GAG100
-
-3.5″ ID Gate Opening
-
-3″ to 4″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 3″ Inlet Connection
-
-COMMONLY USED WITH 3LM/466 TURBOS
4" silicone x 4" gate

-
– P/N: GAG102
-
-3.5″ ID Gate Opening
-
-4″ to 4″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 4″ Inlet Connection
-
-COMMONLY USED WITH S300 TURBOS
5" air gate option

-
-Aluminum Frame With Stainless Steel Spring Actuated Gate
-
-4.5″ ID Gate Opening
-
-Overall Dimension 6.5″ Width x 13.5″ Length
-
-Cable Not Included
4" silicone x 5" gate

-
-P/N: GAG102
-
-4.5″ ID Gate Opening
-
-4″ to 5″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 4″ Inlet Connection
-
-commonly used with s300 turbos
5" silicone x 5" gate

-
-P/N: GAG103
-
-4.5″ ID Gate Opening
-
-5″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 5″ Inlet Connection
5" silicone x 6" gate

-
-P/N: GAG104
-
-Aluminum Frame With Stainless Steel Spring Actuated Gate
-
-5.5″ ID Gate Opening
-
-5″ to 6″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 5″ Inlet Connection
-
-Overall Dimension 7.5″ Width x 16.5″ Length
-
-Cable Not Included

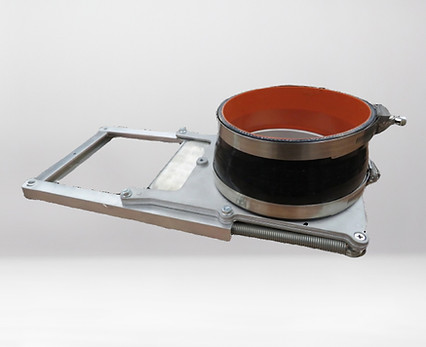

5.5" silicone x 6" gate

-
-P/N: GAG105
-
-Aluminum Frame With Stainless Steel Spring Actuated Gate
-
-5.5″ ID Gate Opening
-
-5.5″ to 6″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 5.5″ Inlet Connection
-
-Overall Dimension 7.5″ Width x 16.5″ Length
-
-Cable Not Included
6" silicone x 6" gate

-
-P/N: GAG106
-
-Aluminum Frame With Stainless Steel Spring Actuated gate
-
-5.5″ ID Gate Opening
-
-6″ Silicone Hose Connection
-
-(2) Heavy Duty T-Bolt Clamps
-
-Use For Turbo’s With 6″ Inlet Connection
-
-Overall Dimension 7.5″ Width x 16.5″ Length
-
-Cable Not Included
billet air gate option

-
gag106
-
6” or 5.5" direct mount
-
Use for S500, HX80,
-
Billet aluminum
-
Optional Adaptor ring
-
Control cable not provided
